Titanium's unique combination of physical, mechanical and corrosion resistant properties makes it an ideal material for many different applications. Titanium's high strength to weight ratio makes titanium the prime choice for high strength, lightweight applications.

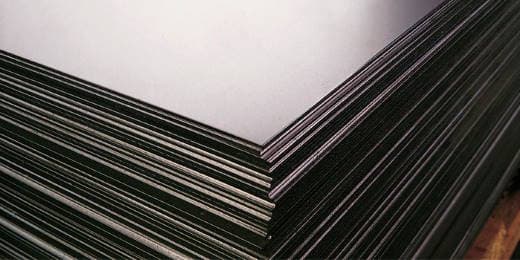

Ti-6Al-4V Titanium, commonly referred to as 6Al-4V, is a 2-phase alpha-beta type Titanium alloy. It is a grade used primarily for wrought products, such as Round Bar, Flat Bar, Rolled Plate, and Forged Products. It is produced in multiple melts starting with a vacuum arc remelt (VAR), electron beam (EB), or plasma arc hearth melt (PAM). Remelting is done in one or two steps in a VAR furnace.
In the annealed condition, its yield strength is 120 Ksi minimum. It is readily formed, and is weldable by using inert gas shielding. Spot, seam, flash and pressure welding are also used depending on the application. Its strength properties can be elevated by solution treatment and aging (STA). This grade has good elevated temperature strength, low temperature impact strength, and has good creep resistance. 6Al-4V Titanium shows good corrosion resistance to sea water and marine atmospheres, and in wet chlorine and chlorine dioxide. Machining is similar to that of Austenitic Stainless Steels, e.g. 304, 316. Slow speeds, heavy feeds, and non-chlorinated cutting fluid are typically used for most applications.
Ti-6AL-4V Titanium at Service Steel Aerospace
Service Steel Aerospace (SSA) is one of the largest titanium distributors in the World. SSA stocks titanium mill products for the Aerospace Industry, Oil Field, Biomedical, Racing and other critical application industries. We rely on our vast inventory and mill relationships to offer immediate delivery on all of our mill products. SSA places the highest value on quality, customer service and customer satisfaction.
Our extensive inventory of ingot and billet allows SSA to competitively support rolled plate, rounds, forged rounds, and open-die custom "on size" block forgings at less than mill lead time and no mill minimums. SSA also offers value added processing such as heat treating, trepanning, water jet cutting, sonic inspection and mechanical testing.
Ti-6AL-4V Titanium is typically used in the following applications:
Used primarily for parts requiring corrosion resistance, stress-corrosion, and high strength 600°F (316°C), with good ductility and strength in transverse direction for
- Jet engine compressor blades, discs and rings
- Airframe components such as wings, airframes, turbine discs, doors, bulkheads
- Military Aircraft & Hardware heat shields, engine nozzles, landing gear doors, fuselage
- Superplastic Formed Parts
- Pressure vessels, chemical processing heat exchangers, tanks, piping
- Space craft components, including rocket engine and heat shields
- Medical & surgical devices
- Recreational Equipment including bicycle frames and golf clubs
- Auto and Boat Racing
- Other uses needing a high strength to weight ratio
